NVIDIA Jetson 開發(fā)套件

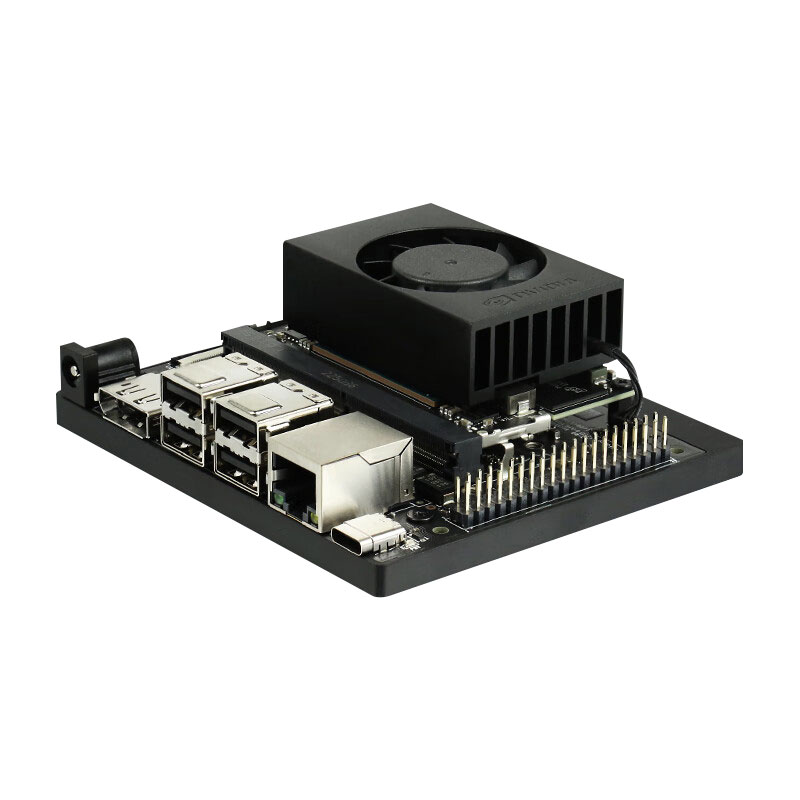

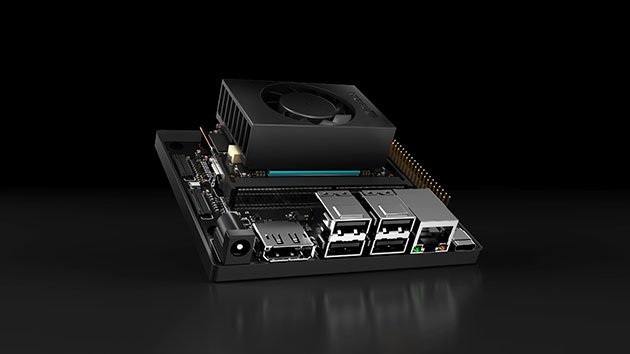

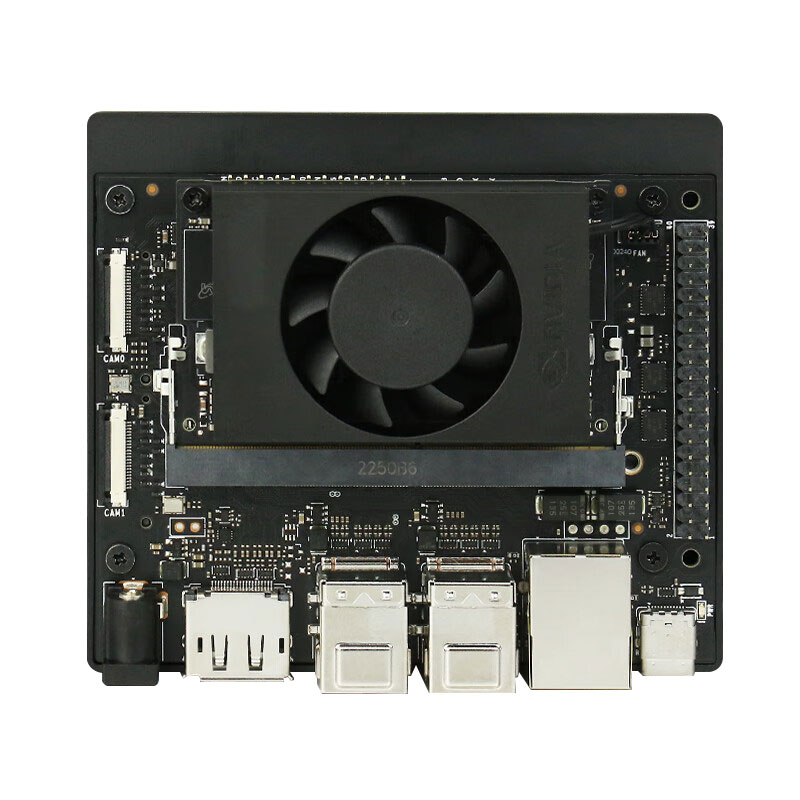

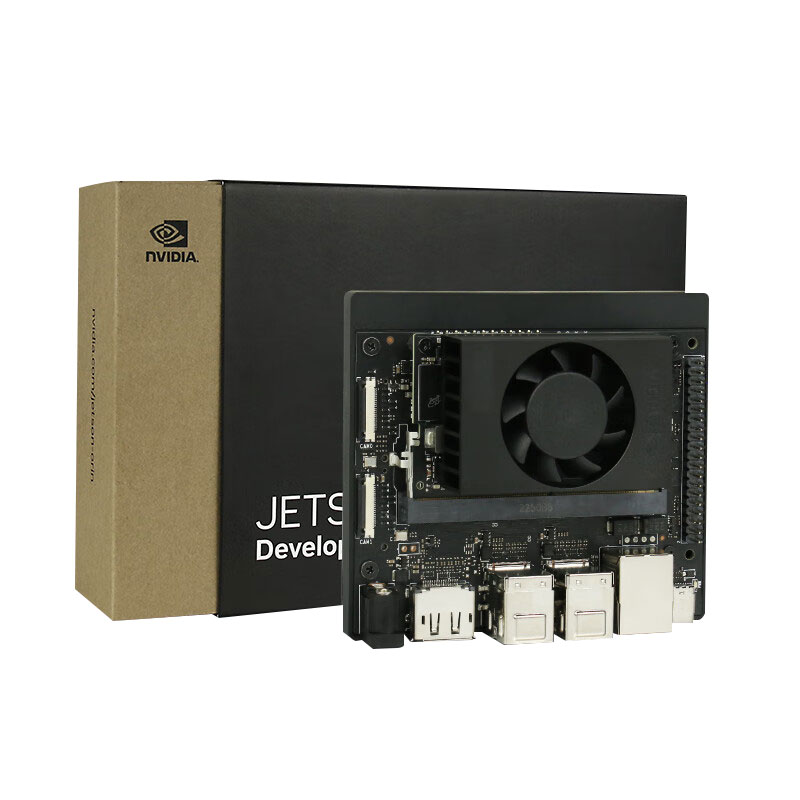

Jetson Orin Nano 開發(fā)套件

40 TOPS
8GB 128-bit LPDDR5 68 GB/s
7W - 15W
100 mm x 79 mmx 21 mm

PN：945-13766-0000-000

* 算力: 可提供高達 40 TOPS 的 AI 性能

* 尺寸: 100mm x79mm x 21mm, 含 Jetson Orin? Nano 模組、散熱器和電源適配器

* Other I/O

> 2x MIPI CSI-2 22-pin camera connectors

> 2x M.2 Key M, M.2 Key E

> 4x USB 3.2 Gen2 Type-A

> USB Type-C for UFP

> Gigabit Ethernet

> DisplayPort

> microSD slot

> 40-pin expansion header

> DC power jack

Jetson Orin Nano Developer Kit Specifications

AI Performance	40 TOPS
GPU	1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores
CPU	6-core Arm® Cortex®-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3
Memory	8GB 128-bit LPDDR5 68 GB/s
Storage	- (SD Card Slot & external NVMe via M.2 Key M)
Video Encode	1080p30 supported by 1-2 CPU cores
Video Decode	1x 4K60 (H.265) 2x 4K30 (H.265) 5x 1080p60 (H.265) 11x 1080p30 (H.265)
Networking	1xGbE Connector
CSI Camera	2x MIPI CSI-2 22-pin Camera Connectors
Display	1x DisplayPort 1.2 (+MST) connector
USB	USB Type-A Connector: 4x USB 3.2 Gen2 USB Type-C Connector for UFP
Other I/O	40-Pin Expansion Header(UART, SPI, I2S, I2C, GPIO) 12-pin button header 4-pin fan header microSD Slot DC power jack
Power	7W - 15W
Mechanical	100 mm x 79 mmx 21 mm (Height includes feet, carrier board, module, and thermal solution)
