Introduction

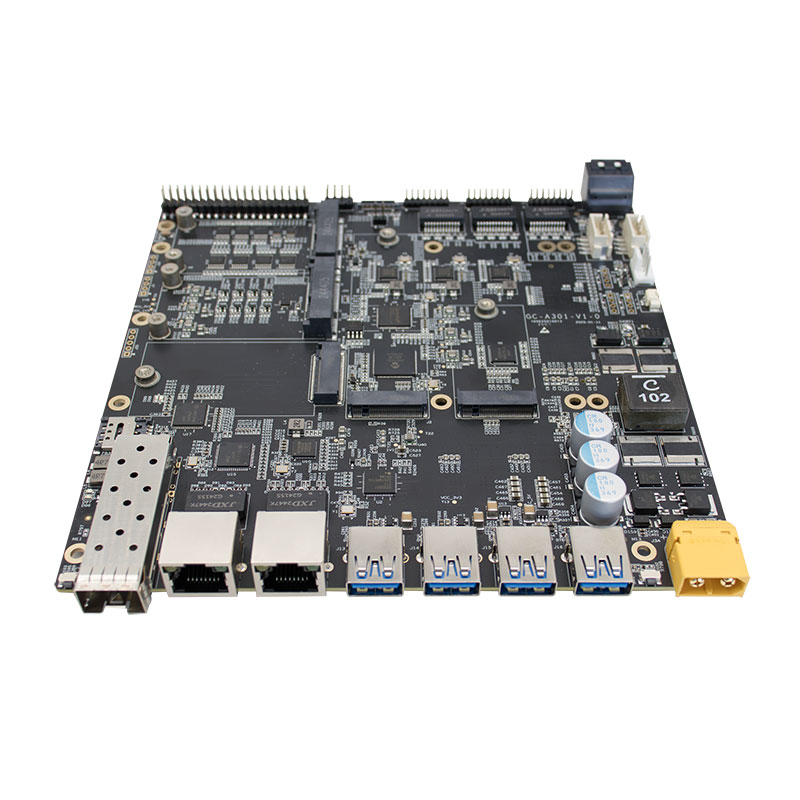

GC-A301 is an industrial-grade development board specifically designed for edge AI scenarios. Its core is equipped with the Ascend 310P processor, delivering up to 176 TOPS INT8 of AI compute, which meets the performance requirements for real-time AI inference in fields such as industrial quality inspection, autonomous driving, intelligent transportation, and intelligent healthcare.
To ensure stable operation in complex environments, this board uses wide-temperature components, and all interfaces have been designed with electrostatic safety protection. It also adopts a high-reliability power supply solution and features input overvoltage and reverse polarity protection functions.
Specifications
Video Encoder/Decoder
JPEG Encoder/Decoder
JPEG Encoder: 4K@192fps (FHD@1024fps)
JPEG Decoder: 4K@384fps (FHD@2048fps)
Select 4 startup methods via the J60 jumper wire
1.EMMC 2.PXE FTP 3.SATA 4.NVME
2x miniPCIe,
1x M.2 KEY M(2280),
1x M.2 KEY M(2242),
1x M.2 KEY B(3050),
1x nano SIM,
2x SATA(power supply)
Processor
AI310SM module（Ascend 310P）
AI Compute
176 TOPS INT8
CPU
ARMv8.2 16core TaishanV200M@max. 1.9 GHz
Memory
48 GB 256 位 LPDDR4X
Storage
128G EMMC
Video Encoder: 24x 1080P@30fps/3x 4K@60fps (H.264/H.265)
Video Decoder: 96x 1080P@30fps/12x 4K@60fps (H.264/H.265)
supports up/down scaling, crop, Chroma up/down sampling, color space conversion（FHD 4320FPS）
Display
1x HDMI(option)
USB
4x USB 3.0 Type-A
Network
6x Gigabit network (2x RJ45+ 3x 16pin Header+ 1x FC )
Button
Expansion
Function Signal
4xCAN，2xSPI，2xIIC，4xGPIO
Serial Port
4xUART
Operating Temperature
-40~+85℃
Dimensions
164mm*164mm*22mm
Input Voltage
DC 9V~36V
Weight
204g
OS
openEuler

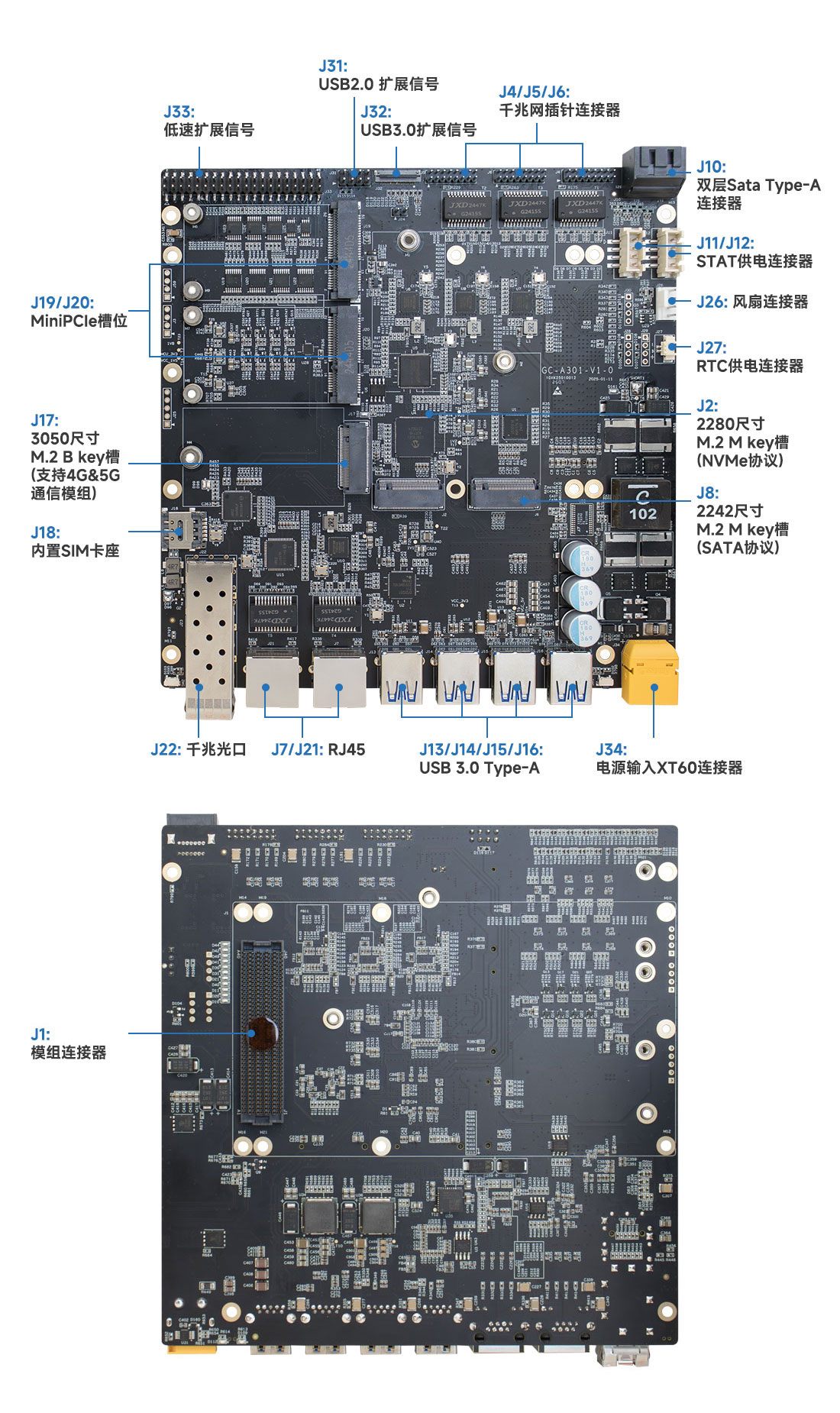

Interfaces
Dimensions
