Introduction

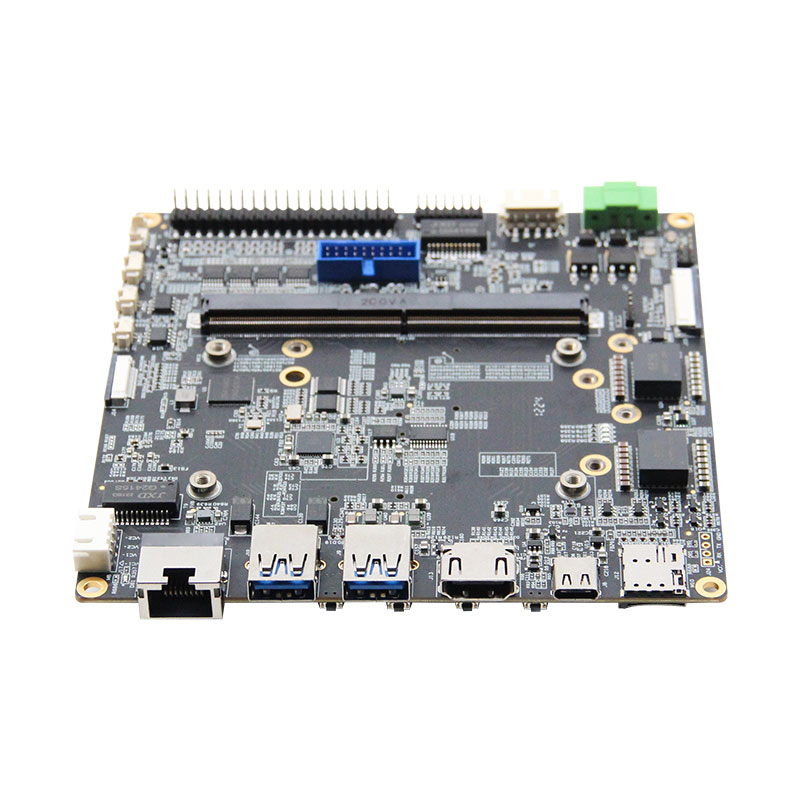

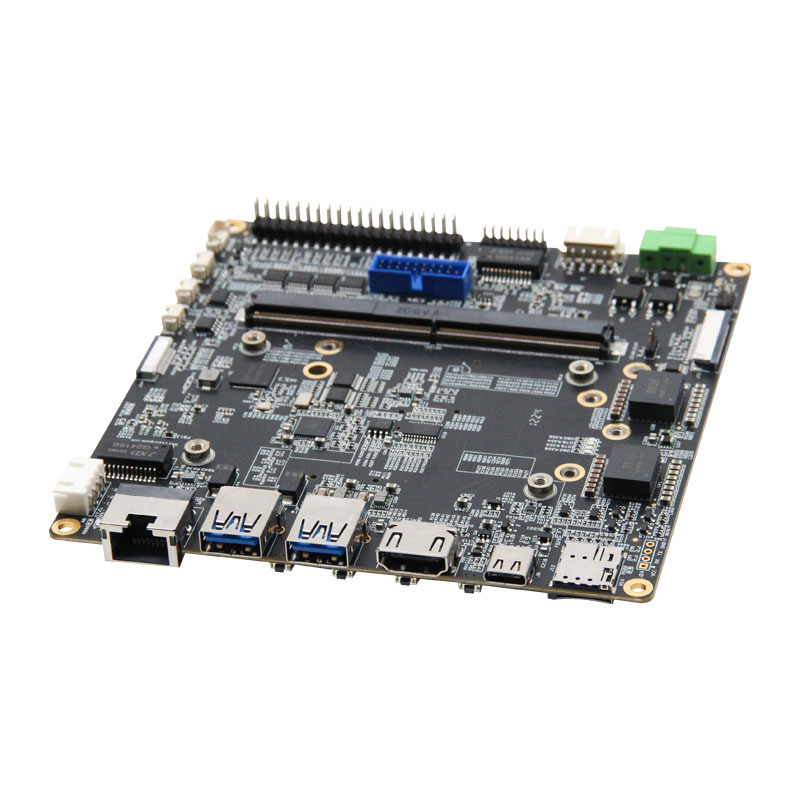

GC-A101 is an industrial-grade development board specifically designed for edge AI scenarios. Its core is equipped with the Ascend Atlas 200I A2 acceleration module, offering 8 TOPS or 20 TOPS computing power options, meeting the performance requirements for real-time AI inference in fields such as intelligent monitoring, smart education, autonomous robots, and drones.
To ensure stable operation in complex industrial environments, this carrier board fully adopts wide-temperature industrial-grade components and has implemented electrostatic safety protection designs for the main interfaces. Its highly reliable power supply solution and abundant external interfaces (including TF card slots and various boot media) provide high flexibility and compatibility for multi-scenario connection adaptation.
Specifications
|
Processor |
Ascend Atlas 200I A2 | |
|
AI Compute |
20 TOPS INT8, 10 TFLOPS FP16 | 8 TOPS INT8, 4 TFLOPS FP16 |
|
Memory |
LPDDR4X, 12/8/4 GB, total bandwidth 51.2 / 34.1 /34.1 GB/s, ECC supported | LPDDR4X, 12/8/4 GB, total bandwidth 51.2 / 34.1 /34.1 GB/s, ECC supported |
| CPU | 4core * 1.6GHz | 4core * 1.0GHz |
|
Video Encoder/Decoder JPEG
Encoder/Decoder |
40x 1080P 30FPS, 4x 4K (3840x2160) 75FPS H.264 / H.265
20x 1080P 30FPS, 3x 4K (3840x2160) 50FPS H.264 / H.265
JPEG decoder:1080P 512FPS, JPEG encoder:1080P 256FPS, max. resolution:16384 x 16384 |
40x 1080P 30FPS, 4x 4K (3840 x 2160) 75FPS H.264 / H.265
20x 1080P 30FPS, 3x 4K (3840 x 2160) 50FPS H.264 / H.265
JPEG decoder:1080P 512FPS, JPEG encoder:1080P 256FPS, max. resolution:16384 x 16384 |
| Display |
1x HDMI, 1x MIPI DSI
|
|
| USB |
2x USB 3.0 Type-A, 1x USB 3.0 Type-C, 1x USB3.0 HEADER
|
|
| Network |
2x Gigabit network (1x RJ45+ 1x 16pin Header)
|
|
| SD | 1x Micro SD | |
| Button |
1x Power, 1x Recovery, 1x Reset, 1x sleep
|
|
|
Expansion |
1x miniPCIe, 1x M.2 KEY E(2230), 1x M.2 KEY M(2242), 1x M.2 KEY B(3050), 1x nano SIM, 1x SATA(power supply)
|
|
| Function Signal | 1x AUDIO IN,2x AUDIO OUT,2x IIC,2x IIS,1x SPI,5x GPIO | |
| Serial Port | 3x UART | |
| Temperature | -40~+85℃ | |
| Dimensions |
130.8mm*128.5mm*18.8mm
|
|
| Input Voltage | DC 19V | |
| Weight | 113g | |
| OS | openEuler/Ubuntu | |

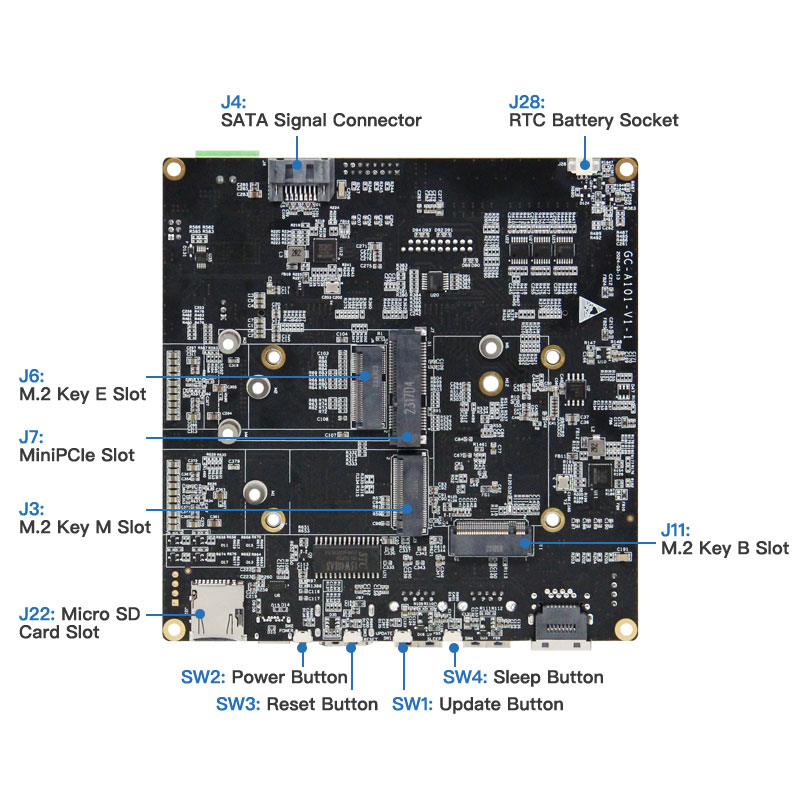

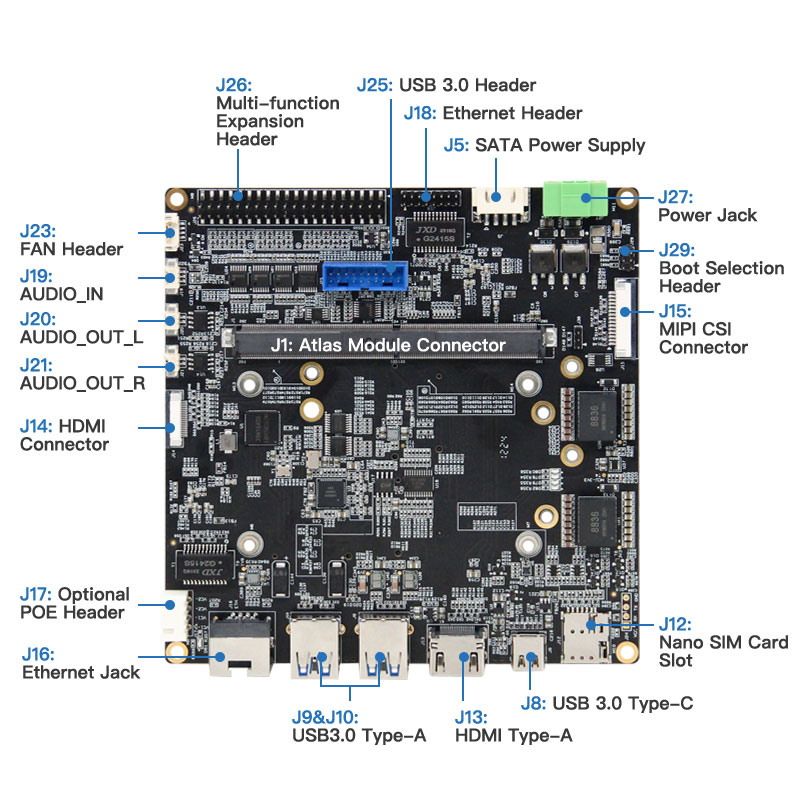

Interfaces
Dimensions
